Carbide Wedge Buttons
  • High durability
  • High precision
  • Install tightly
  • Increase drilling effectiveness

description

undefinedCarbide Ball Head Buttons

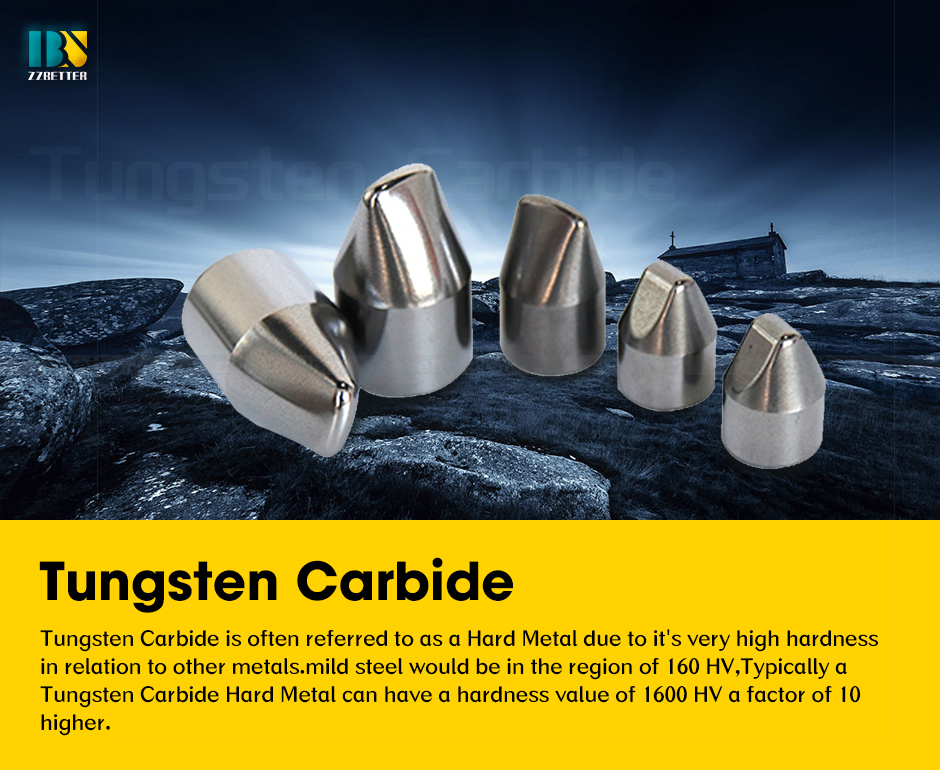

Brief introduction about tungsten carbide buttons

Tungsten carbide is used many drilling and mining fields. With high resistance to wear is demanded in drilling, milling, trenching and cutting. ZZbetter offers an extensive product line, including many dimensions and shapes and which is constantly being used on drilling and mining tools. ZZbetter also manufactures tungsten carbide/cemented carbide/ hardalloy buttons in special shapes for certain applications.

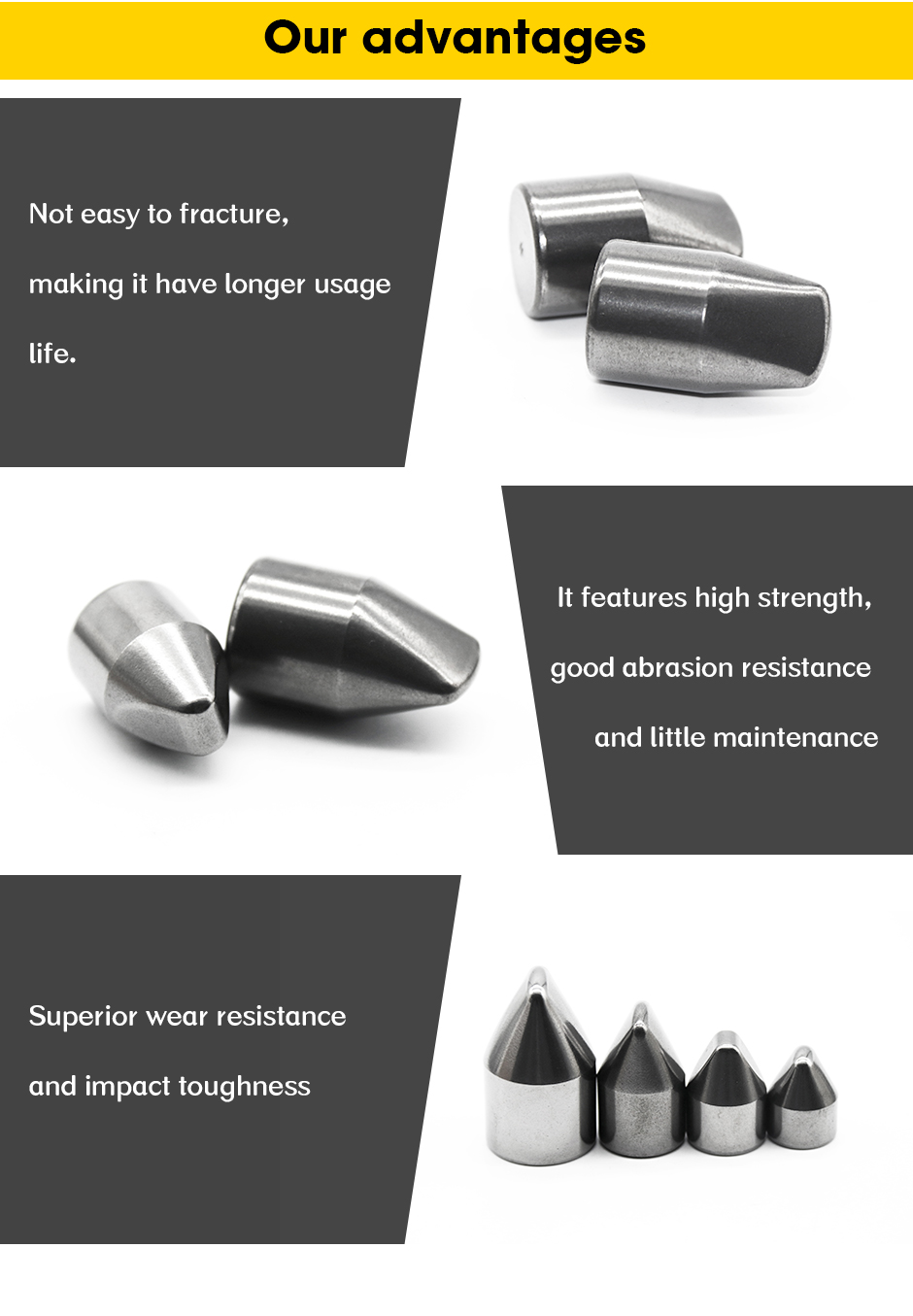

Advantages of tungsten carbide buttons

1. Having unique working performance

2. High hardness and good wear resistance

3. Widely used in mining of various rocks and oil drilling.

4. Suitable for crushing very strong granite, limestone and poor iron ore, etc.


Classifications of tungsten carbide buttons

Spherical Buttons

Carbide Tapered Button

The spoon-shaped button

Parabolic Button

Wedge Button

Road Digging Button

The above-mentioned cemented carbide button of various shapes have their respective ranges of use and working characteristics. What kind of cemented carbide button should be used based on the test and choose the appropriate cemented carbide button shape according to the actual situation.


Applications of tungsten carbide buttons

1. Oil drilling and shoveling, snow plow machines and other equipment.

2. Used for coal drilling tools, mining machinery tools and road maintenance tools.

3. used in quarrying, mining, tunneling, and civil construction.

4. DTH Drill bit, thread drill bit and other drill bits.


Learn more uses >> send inquiry to us




 undefined

Carbide Ball Head Buttons

Common grades for tungsten carbide buttons

      Grade

Density

g/cm3

TRS

MPa

Hardeness HRA

Applications

YG4C

15.10

1800

90.0

It is mainly used as an impact drill for cutting soft, medium and hard materials

YG6

14.95

1900

90.5

Used as electronic coal bit, coal pick, petroleum cone bit and scraper ball tooth bit.

YG8

14.80

2200

89.5

Used as core drill, electric coal bit, coal pick, petroleum cone bit and scraper ball tooth bit.

YG8C

14.80

2400

88.5

It is mainly used as the ball tooth of small and medium-sized impact bit and as the bearing bush of rotary exploration drill.

YG11C

14.40

2700

86.5

Most of them are used in impact bits and ball teeth used to cut high hardness materials in cone bits.

YG13C

14.2

2850

86.5

It is mainly used for cutting ball teeth of medium and high hardness materials in rotary impact drill.

YG15C

14.0

3000

85.5

It is a cutting tool for oil cone drill and medium soft and medium hard rock drilling.


undefined


undefined
