• Carbide rods with central coolant hole
Carbide rods with central coolant hole
  • Application: for making drill
  • Diameter: 4.5mm to 20mm
  • Length: 330mm/310mm or customized
  • Material: WC+Co

DESCRIPTION

Carbide rods with central coolant hole


The tungsten carbide rods with central coolant hole (also named as cemented carbide rods with one hole), are used in making high quality carbide cutting tools, such as drill. The hole is used for cooling when working.




1. Type Specification: ØD×Ød× L

2. Application: for making cutting tools, such as drill.

3. Diameter: 4.5mm to 30mm

4. Length: standard 330mm/310mm or customized

5. Surface: blank or ground

6. Material: WC+CO


 Product Name  Carbide rods with central coolant hole
 Material WC+CO
 Grade K05-K40
 Grain Size fine, medium
 Hardness 87.6-94HRA
 T.R.S 3000-4200
 Surface blank or ground
 Application Used for manufacturing cutting tools such as drill



Grade properties

Grade

ISO Code

Grain Size

Cobalt

Density (g/cm3)

Hardness (HRA)

T.R.S(Mpa)

UBT05

K05-K10

1.0

6.0

14.95

92

3000

UBT10

K05-K10

0.4

6.0

14.8

94

3800

UBT20F

K20-K40

0.8

10.2

14.5

91.5

3900

UBT20

K20-K40

0.6

10.2

14.3

92.3

3800

UBT25

K20-K40

0.4

12

14.1

92.5

4200

UBT30

K30-K40

1.5

15

14

87.6

4000



Grade applications

Grade

Recommended application

UBT05

Drill, endmill and burr are recommended. Especially suitable for cutting non-ferrous metal and graphite (coating is needed)

UBT10

Ultrafine grain size, with good wear resistant. Higher wear resistant endmill and engraving tools are recommended. Suitable for cutting PCB and plastic

UBT20F

Drill and endmill are recommended. Suitable for cutting general steel (HRC<48), grey cast iron, stainless steel and heat resistant alloy

UBT20

Drill and endmill are recommended. Suitable for cutting stainless steel, heat resistant alloy and cast iron

UBT25

Ultrafine grain size, high cobalt content with excellent hardness and toughness, endmill and reamer are recommended, especially suitable for cutting steel(HRC:45-55), aluminum alloy and titanium alloy

UBT30

Suitable for making punching of moulds, tools and anti-vibration boring bar etc



The normally used dimensions are as below

Type

Tol.of diameter(mm)

Length(mm)

Tol.of length(mm)

Ø4.5×Ø0.8×330

+0.50/+0.25

330/310

-0~+0.5

Ø6.0×Ø1.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø7.0×Ø1.5×330

+0.50/+0.25

330/310

-0~+0.5

Ø8.0×Ø1.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø8.0×Ø2.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø9.0×Ø2.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø10.0×Ø2.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø10.0×Ø3.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø11.0×Ø3.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø12.0×Ø2.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø12.0×Ø3.0×330

+0.50/+0.25

330/310

-0~+0.5

Ø13.0×Ø2.0×330

+0.55/+0.25

330/310

-0~+0.5

Ø14.0×Ø3.0×330

+0.55/+0.25

330/310

-0~+0.5

Ø16.0×Ø3.0×330

+0.55/+0.25

330/310

-0~+0.5

Ø16.0×Ø4.0×330

+0.55/+0.25

330/310

-0~+0.5

Ø18.0×Ø3.0×330

+0.60/+0.25

330/310

-0~+0.5

Ø20.0×Ø4.0×330

+0.65/+0.25

330/310

-0~+0.5


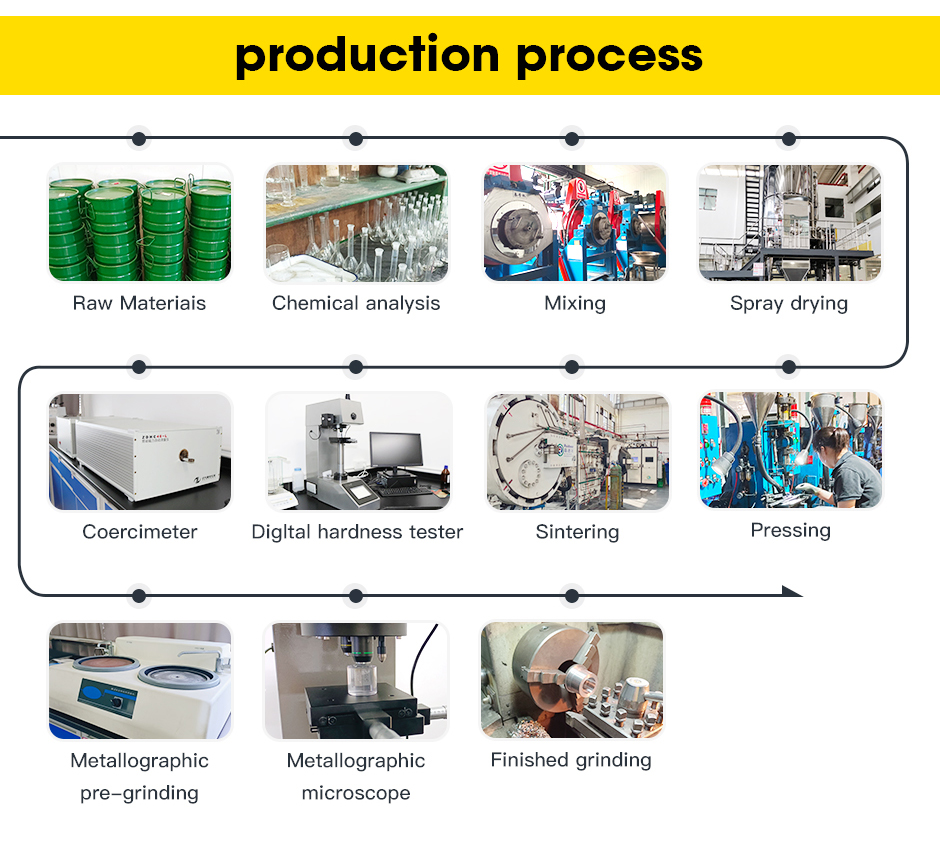

Noted: we can produce tungsten carbide rods per customer's request
