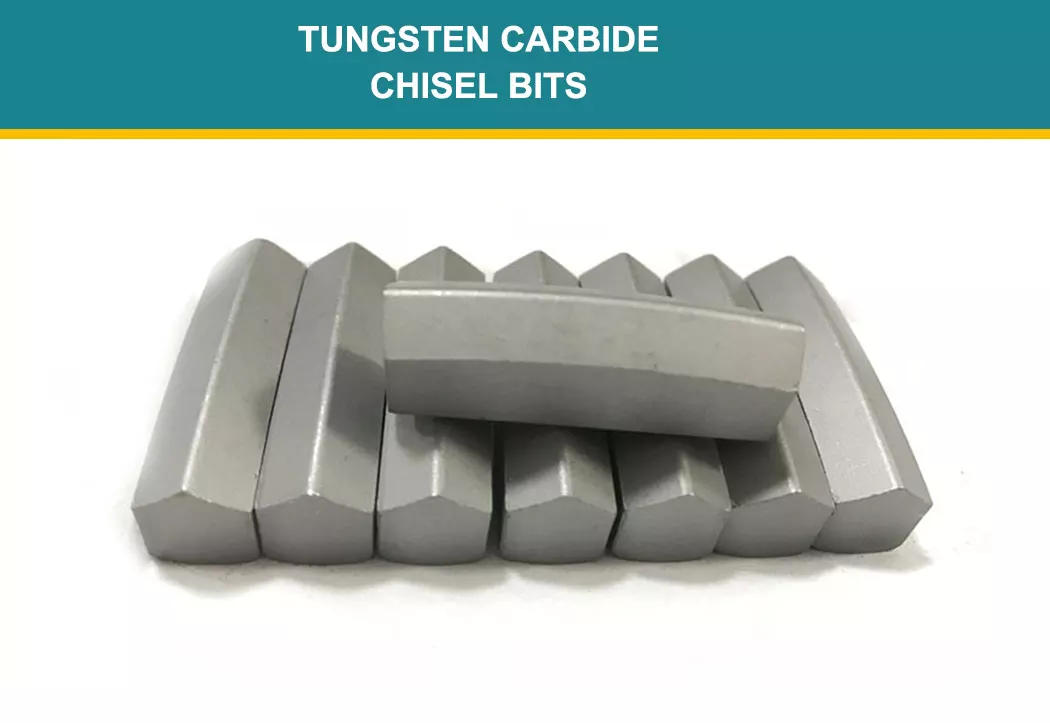

Tungsten Carbide Chisel Bits
- Full sizes
- High resistance
- Easy to weld
- Increase drilling effectiveness
description

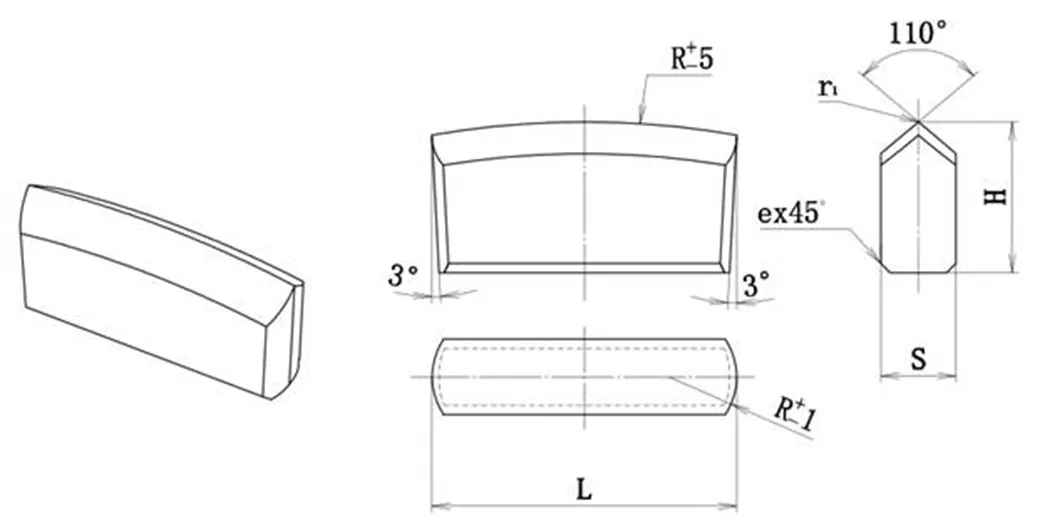

2.Product Specification of the Carbide Chisel Bits
| Type | Dimension (mm) | |||||
| L | H | S | R | r | r1 | |
| Dim. | Dim | Dim | ||||
| K1013 | 13 | 10 | 4 | 40 | 8 | 0.5-1.0 |
| K1016 | 16 | 12 | 6 | 30 | 8 | |
| K1020 | 20 | 12 | 6 | 40 | 10 | |
| K1026 | 26 | 12 | 6 | 50 | 13 | |
| K030 | 30 | 15 | 8 | 80 | 15 | |
| K1032 | 32 | 15 | 8 | 80 | 16 | |
| K1034 | 34 | 15 | 8 | 80 | 17 | |
| K1036 | 36 | 15 | 8 | 80 | 18 | |
| K1038 | 38 | 15 | 8 | 120 | 19 | |
| K1040 | 40 | 15 | 8 | 120 | 20 | |
| K1043 | 43 | 15 | 10 | 120 | 21.5 | |
| K1046 | 46 | 15 | 10 | 160 | 23 | |
| K1049 | 49 | 18 | 10 | 160 | 24.5 | |
| K1054 | 54 | 18 | 10 | 160 | 27 | |

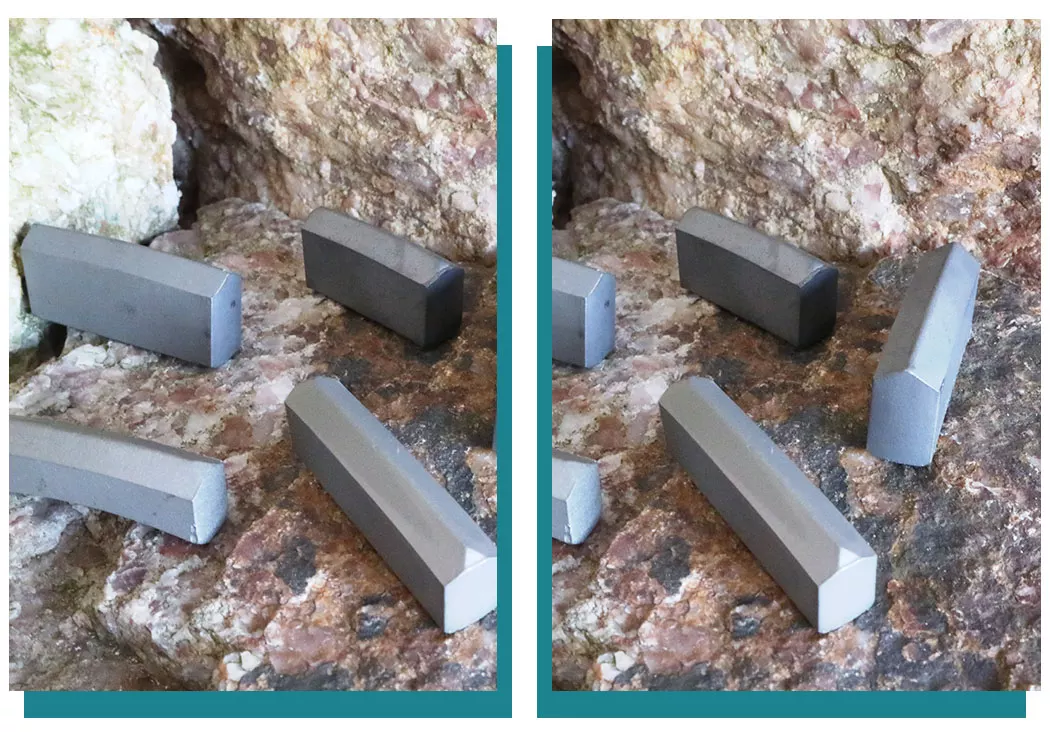

Product feature and application of the Carbide Chisel Bits
Tungsten carbide chisel bits grade as belows
| Co% | Density (g/cm³） | Hardness (HRA) | TRS (Mpa) | WC Grain Size μm |
| 9 | 14.61 | 87.7 | 2800 | 2.4 |
| 10 | 14.52 | 87.2 | 2900 | 3.2 |
| 11.5 | 11.36 | 87.2 | 3000 | 2.4 |
We can provide difference size different Chisel bits as you need.
5.Product qualification of the Carbide Chisel Bits
Delivery, shipping and serving
● The delivery time is 7-15 days.
● Shipping support air, sea, express as demand.
● Service time is 24 hours.
