Tungsten Carbide Pellets
  • hardfacing deposits for drilling
  • can be customized; different sizes and different grades
  • tungsten carbide
  • high hardness

description

Tungsten Carbide Pellets for Hardfacing Deposits in Drilling

Tungsten Carbide Pellets for Hardfacing Deposits in Drilling

What is tungsten carbide pellets?

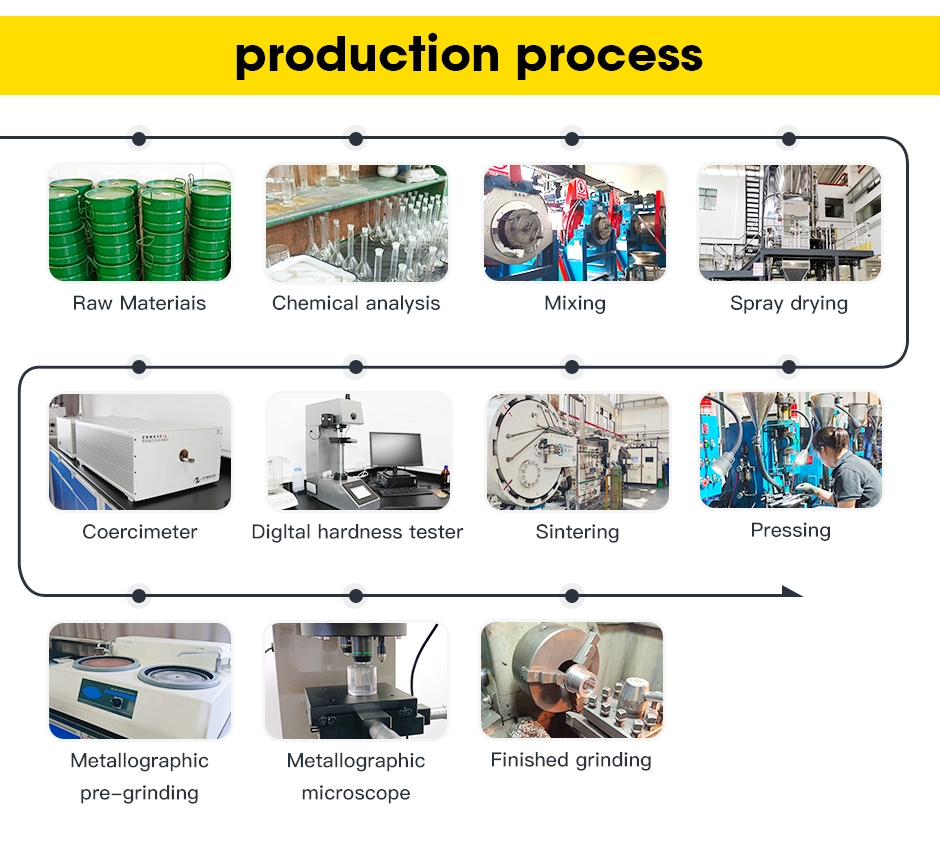

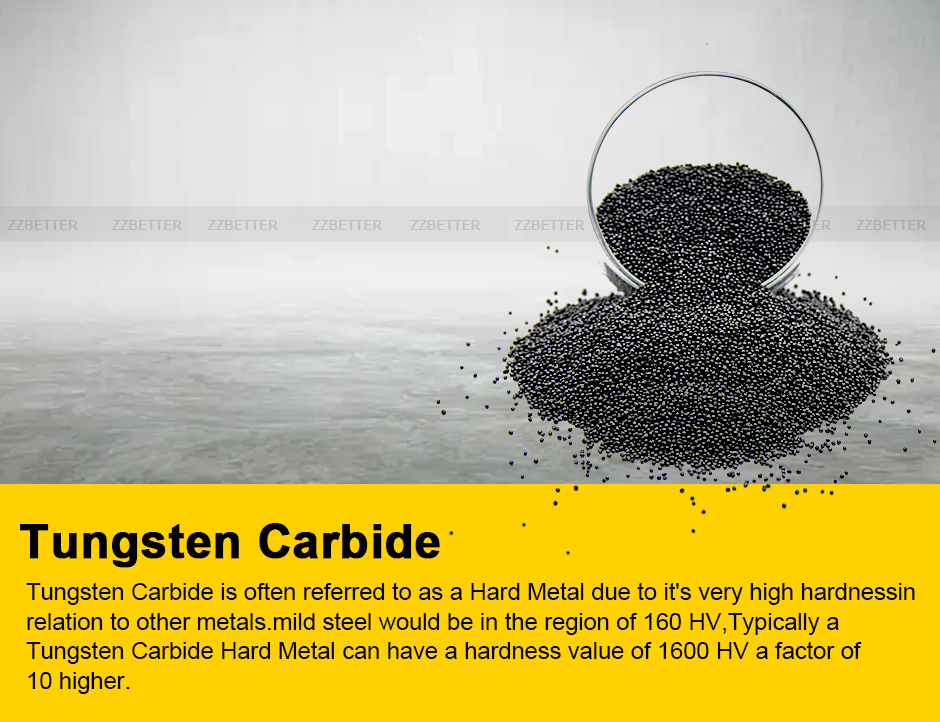

Tungsten carbide pellets, also known as cemented carbide pellets, are unique products,because they are made from sintered tungsten carbide with a cobalt binder. They have extremely high hardness after compressing, sintering, and granulating under extreme heat and pressure,meanwhile they are also resistant to interaction with various liquids and alloys. Different compositions and particle sizes of WC and pellets can show different and high resistance to impact and abrasion resistance according to different proportion collocation.

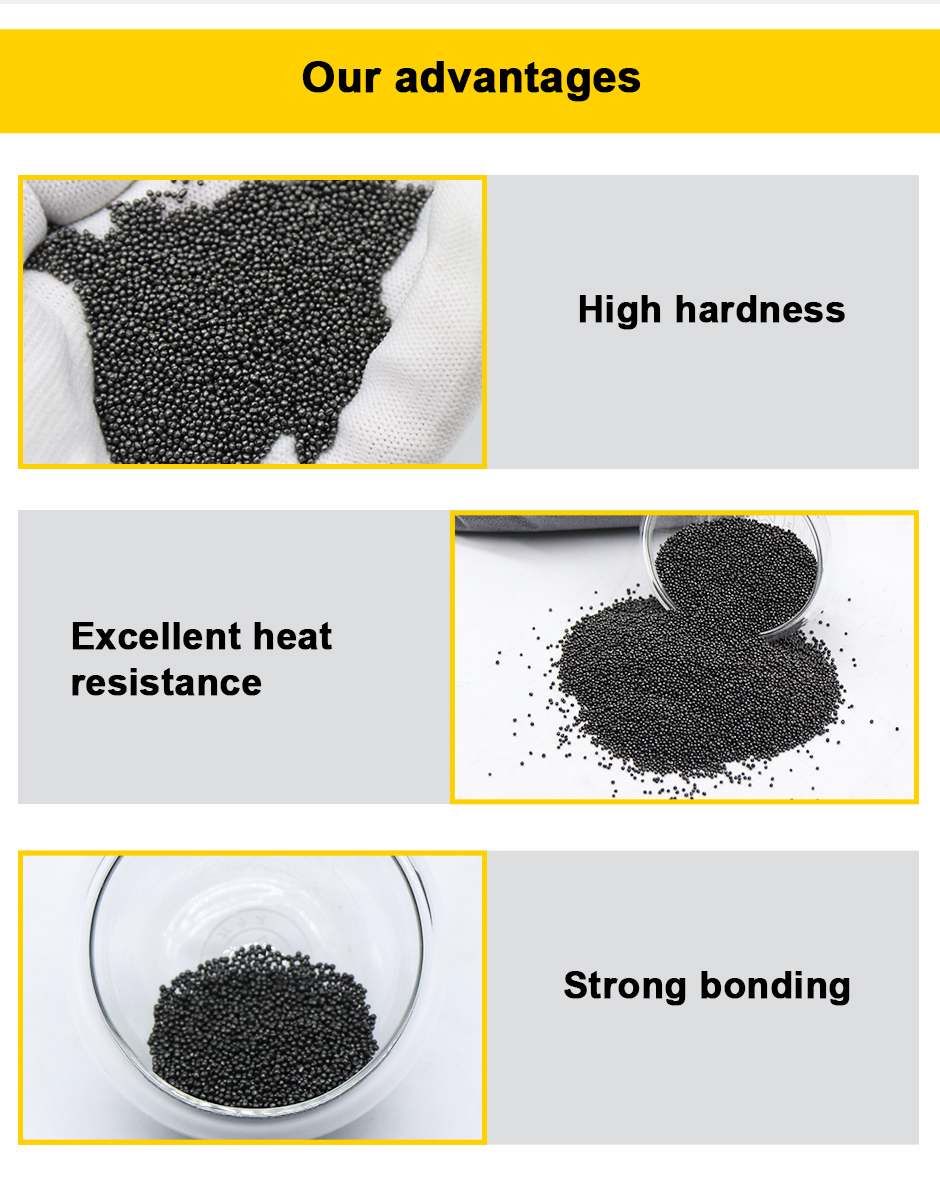

What is the features of cemented carbide pellets?

1. Significantly increase surface hardness, harder than steel pellets
2. Increase wear resistance, toughness of cobalt bonded matrix with excellent impact resistance
3. Increase corrosion resistance
4. Increase work life
5. Spherical shape suitable for sliding wear

What are the uses of tungsten carbide pellets ?

Tungsten Carbide Pellet is for hard-surfacing to increase significantly the service life after welding onto the surface of the tools to form a hardened wear-resistant layer against abrasive wear, and spraying wear parts in mining and oil drilling field, and for built-up welding to improve substantially the hardness, wear resistance and corrosion resistance of the surface of the machined parts. Tungsten carbide pellet is also widely used as punching and stamping machine parts, impact-resistant forging die, hot forging die and finished rollers, engineering machinery, metallurgical as well as the mining industry, etc

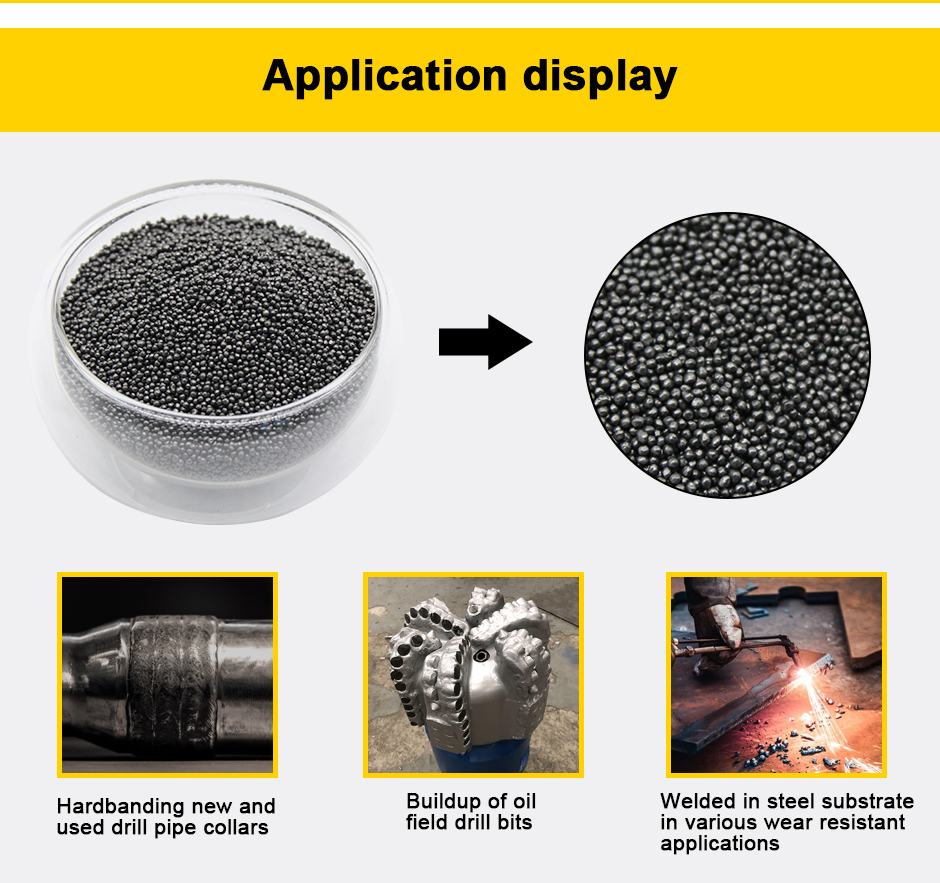

1.Hardbanding new and used drill pipe collars
2.Buildup of oil field drill bits
3.Welded in steel substrate in various wear resistant applications

Tungsten Carbide Pellets for Hardfacing Deposits in Drilling

Tungsten Carbide Pellets for Hardfacing Deposits in Drilling

Tungsten Carbide Pellets for Hardfacing Deposits in Drilling

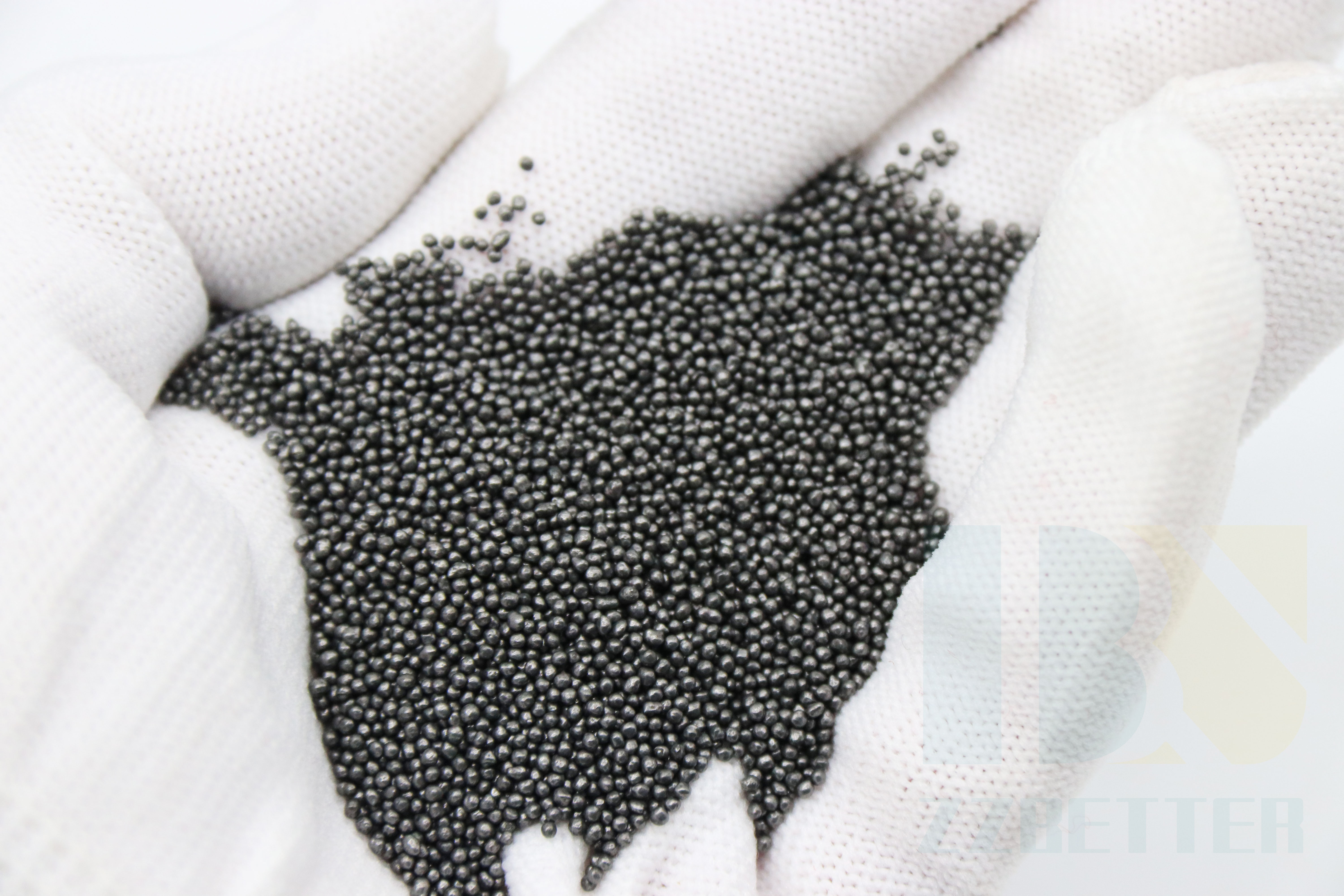

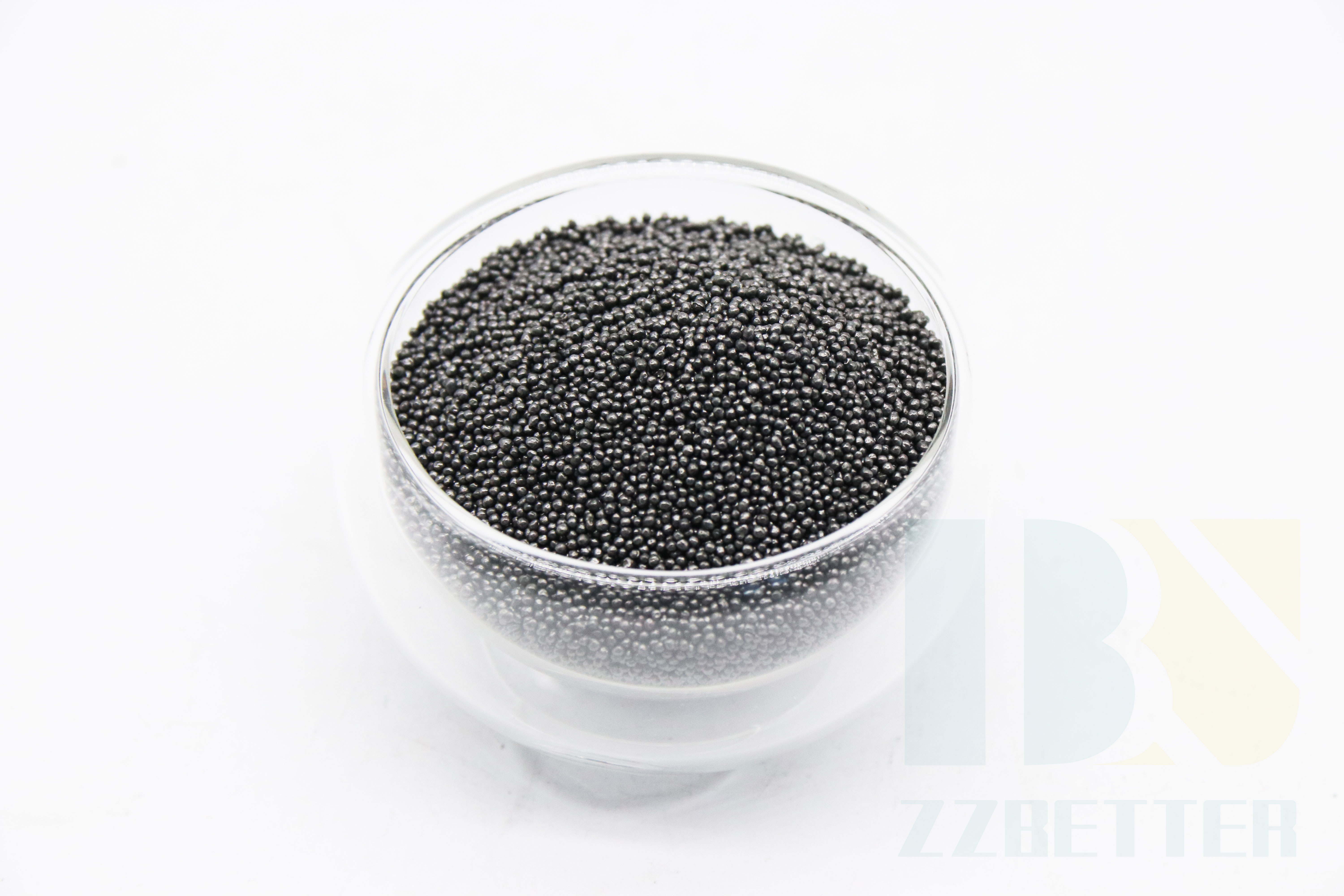

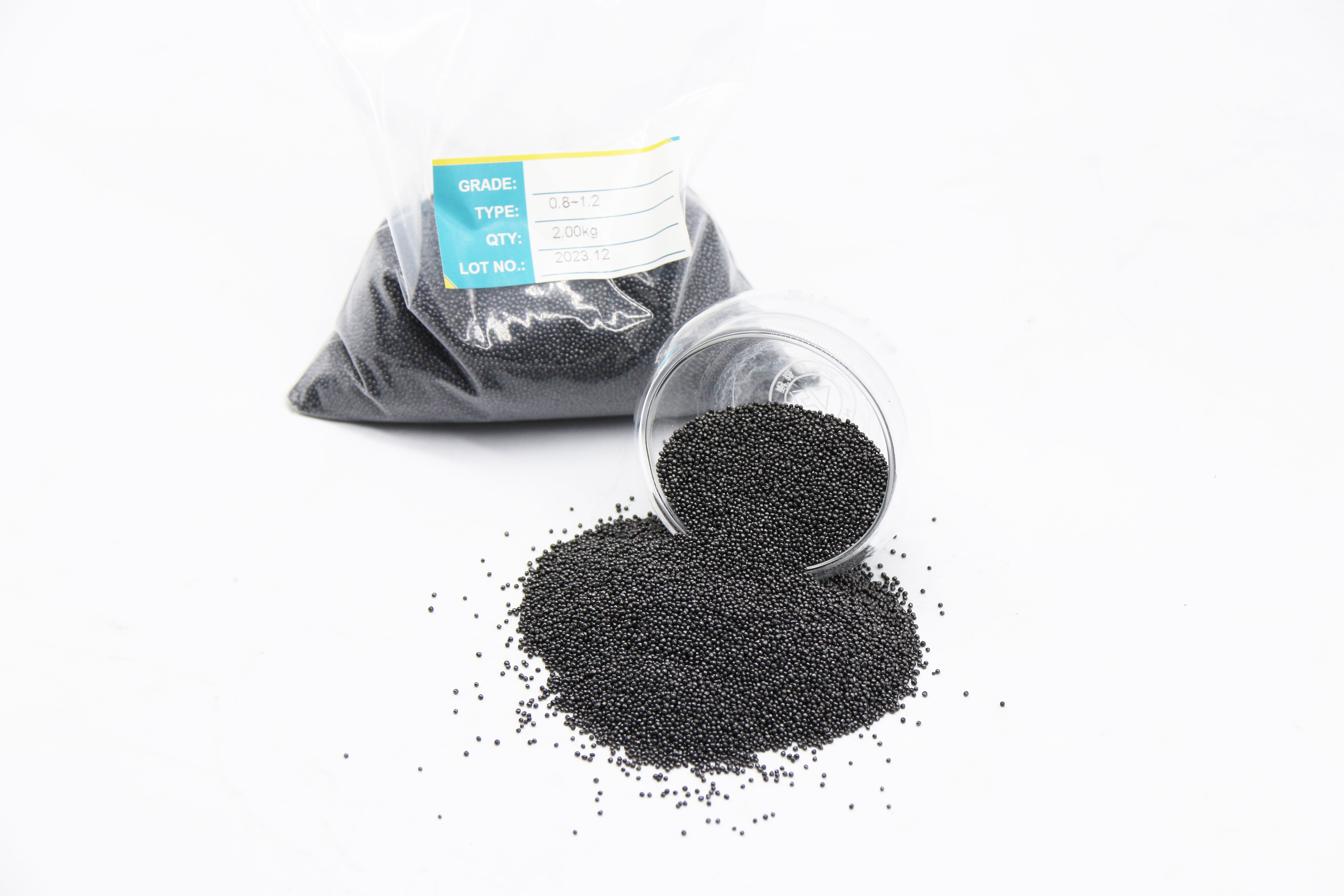

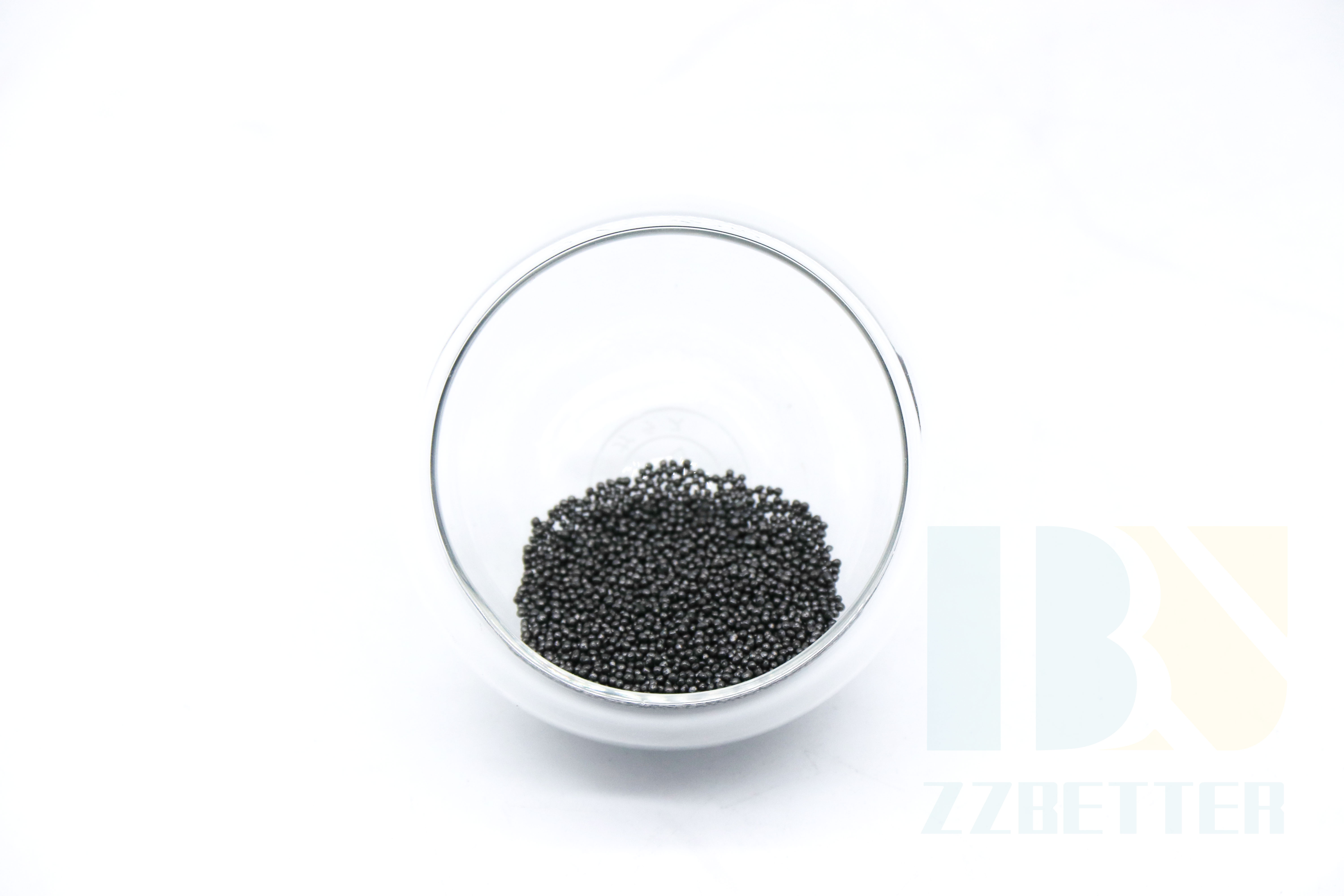

Appearance: Grey metal particles


Size range: 250um-2.7mm/10 -100 meshes
Grade
WC%
CO%
Density
Hardness
Porosity
Micro-structure
BTQ1
≥85
14-15
13.9-14.1
≥70
A02B02C02

BTQ2
≥90
9-10
14.3-14.6
≥75
A02B02C02
No decarburization
Aggregation of
non-cobalt
BTQ3
≥93
6-7
14.5-15.1
≥78
A02B02C02

BTQ4
≥96
3.5-4
14.9-15.3
≥80
A02B02C02

YQ5
≥80
19-20
13.3-13.6
≥61
A02B0
