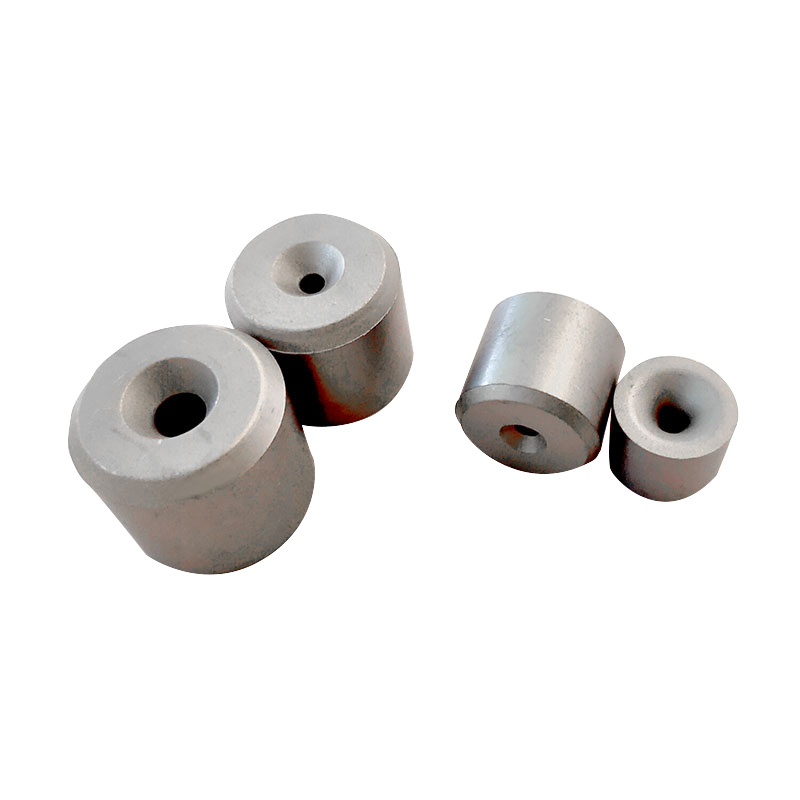

Tungsten Carbide Wire Drawing Die Nibs

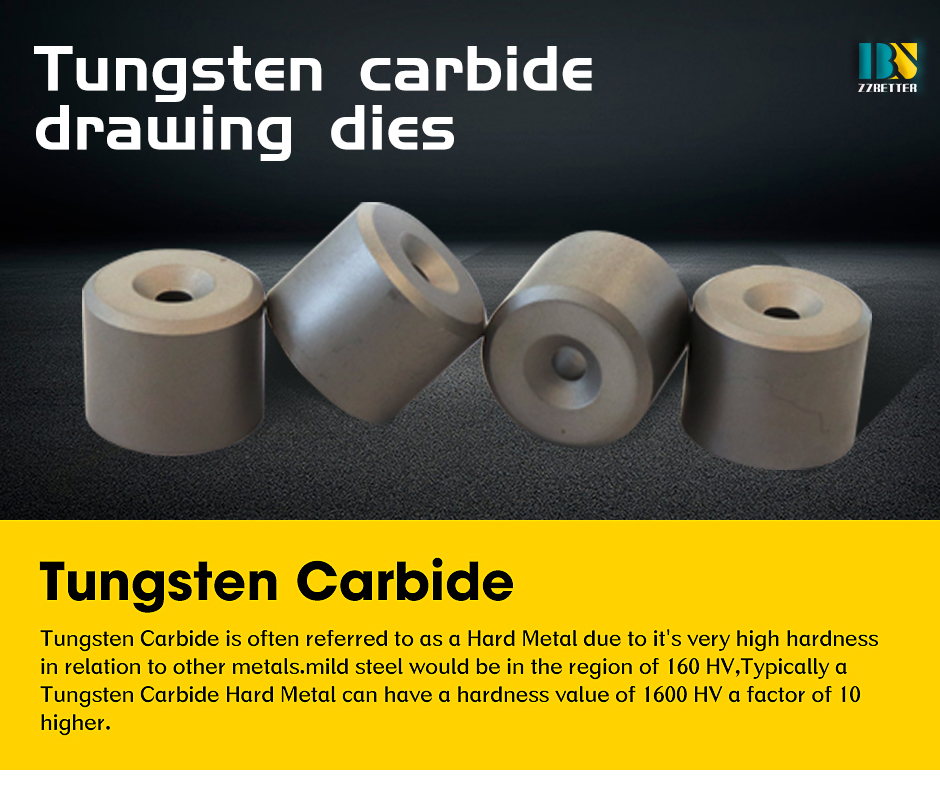

  • Tungsten carbide drawing dies made of tungsten carbide and cobalt. It have good wear resistance, high toughness. Then widely used to drawing steel, copper, stainless steel, aluminum wire and tube.

DESCRIPTION

Tungsten Carbide Wire Drawing Die Nibs
Tungsten Carbide Wire Drawing Die NibsThe advanges of our drawing dies

● Varius of size and type and can make as clients’ need;
● Delivery time is fast;
● Strictly quality control;
● Production experienced.

Tungsten Carbide Wire Drawing Die Nibs

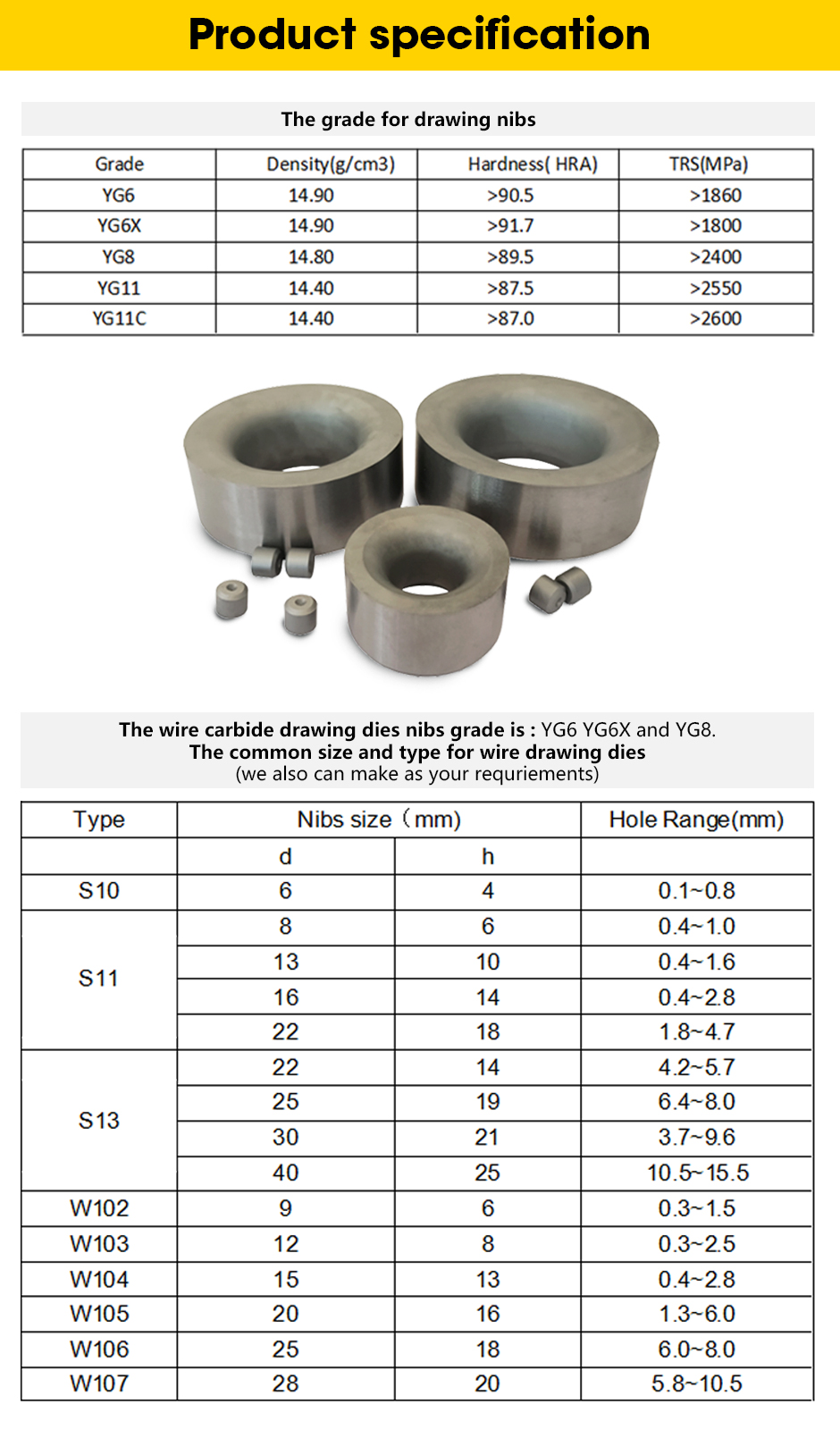

The wire carbide drawing dies nibs grade is : YG6 YG6X and YG8.

GradeDensity(g/cm3)Hardness( HRA)TRS(MPa)
YG614.90>90.5>1860
YG6X14.90>91.7>1800
YG814.80>89.5>2400
YG1114.40>97.5>2600


The common size and type for wire drawing dies (we also can make as your requriements)
Tungsten Carbide Wire Drawing Die Nibs

TypeNibs size(mm)Hole Range(mm)
dh
S10640.1~0.8
S11860.4~1.0
13100.4~1.6
16140.4~2.8
22181.8~4.7
S1322144.2~5.7
25196.4~8.0
30213.7~9.6
402510.5~15.5
W102960.3~1.5
W1031280.3~2.5
W10415130.4~2.8
W10520161.3~6.0
W10625186.0~8.0
W10728205.8~10.5
