• Carbide Edge Block For HPGR

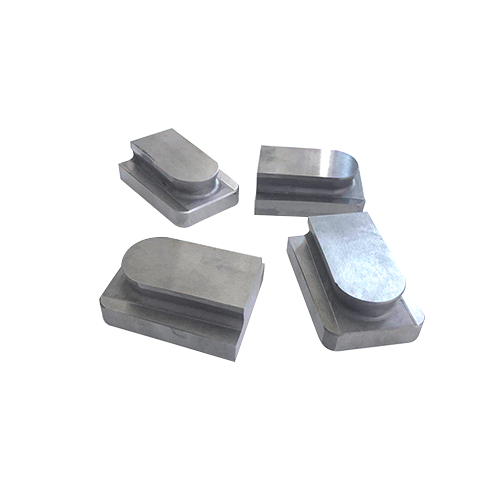

Carbide Edge Block For HPGR
  • High durability
  • Various types
  • Excellent shock resistance
  • Good performance in rought working situation



Description of carbide HPGR studs:

  1. HPGR is an energy-efficient crushing equipment used to reduce particles by compressing and crushing the feed between two counter rotating, parallel rollers with a small gap between them. HPGR is widely used in grinding cement clinker, limestone, bauxite, iron ore..The tungsten carbide HPGR studs are installed in high pressure grinding roller as the wear roller surface to grinding those stone or ore.

  2. Tungsten carbide studs also called cemented carbide studs, carbide buttons and carbide studs for HPGR. The tungsten carbide HPGR STUDS which made from tungsten carbide will inlaid on the body of the high pressure grinding roller. Tungsten carbide studs roller has a service life more than 6 times longer than that of the surfacing roller surface.

  3. The wear-resistant layer is made of tungsten-cobalt hard alloy studs and inlaid on the body. Generally up to HRC67 or higher, the hardness is much higher than that of the PTA layer roller surface and the centrifugal casting composite roll surface, and the matrix of the stud roller surface can be well protected by the material lining formed. Tungsten carbide studs roller has a service life more than 6 times longer than that of the surfacing roller surface.

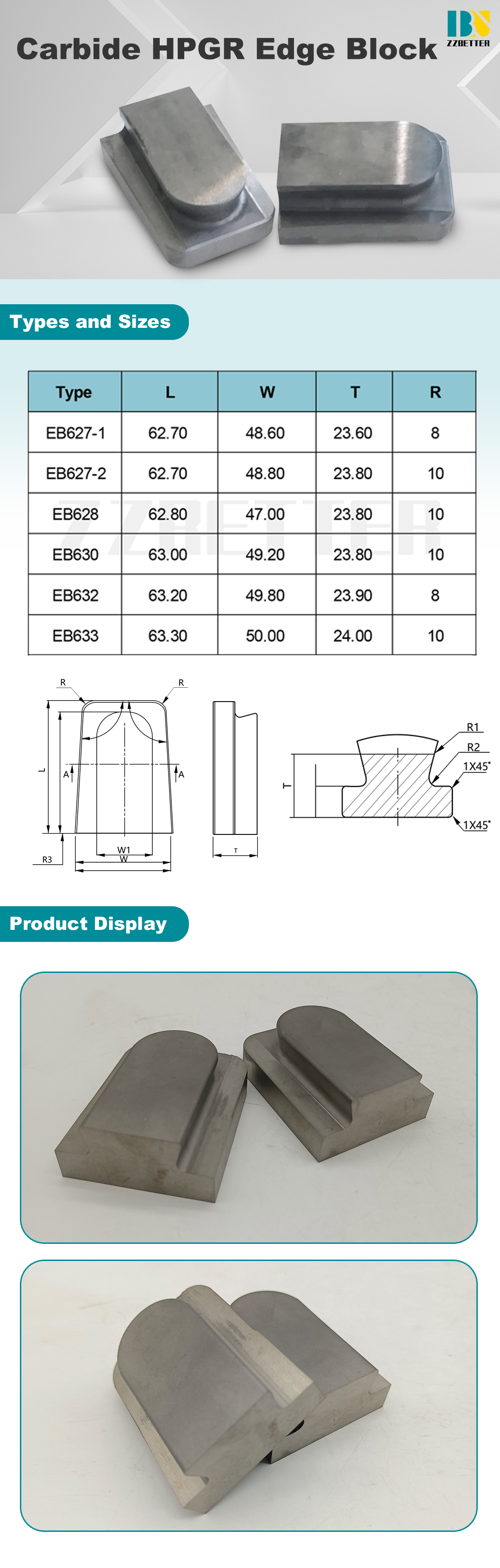

Type Specification of carbide HPGR studs

  1. Flat top, Domed top, With tip top, Hemispherical top

  2. We can produce as your drawing or sample.

  3. Diameter: 16mm to 32mm, we also have 9mm studs

  4. Length: 20mm, 25mm, 30mm, 35mm, 40mm, 45mm

  5. Surface: blank ,ground, tumble polished


undefinedGrade Information of carbide HPGR studs

  1. Grades below are exclusive grades we developed for HPGR. Good wear resistance and high strength are suitable for metal smashing with high working efficiency.

  1.   ZZBT Grade

    Density (g/cm3)

    Hardness (HRA)

    T.R.S                (MPα)

    Recommended Application





    For grinding soft and middle hard


    or mines





    For grinding soft and middle hard stones or mines





      For grinding hard stones or mines

Delivery Time: within 7 days for stock sizes

                            around 15 days for non-stock products, depending on types and quantity

Shipping method: By express (DHL, TNT, FedEx, UPS, etc), By Air, By Sea


FAQ of carbide HPGR studs


  1. Q: Are you trading company or manufacturer ?

  2. A: We are factory.

  3. Q: How long is your delivery time?

  4. A: Generally within 7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

  5. Q: Do you provide samples ? is it free or extra ?

  6. A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

  7. Q: What is your terms of payment ?

  8. A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance, balance before shipment.
